Keycloak Multi-Tenancy: Realms vs Organizations
I'd heard Keycloak gets weird with many realms. So I benchmarked it. It does.
I’d heard repeatedly that “Keycloak gets weird with many realms,” but I never had concrete numbers to back it up. If you’re building multi-tenant SaaS on Keycloak, you’ve got two options: the classic realm-per-tenant model, or the newer organizations feature (KC 26+) that keeps every tenant in a single realm. Conventional wisdom says realms-per-tenant doesn’t scale — but by how much, and where does it actually fall over?
So I wrote a small benchmark to find out. A docker-compose stack, a REST seeder, three k6 workloads, and a sweep driver that walks tenant counts from 1 to 1500 in both modes. Everything runs on a single laptop (Ryzen 7640U, 60 GB RAM, Keycloak 26.0 with Postgres). The absolute numbers will shift on other hardware — the shape of the curves won’t.

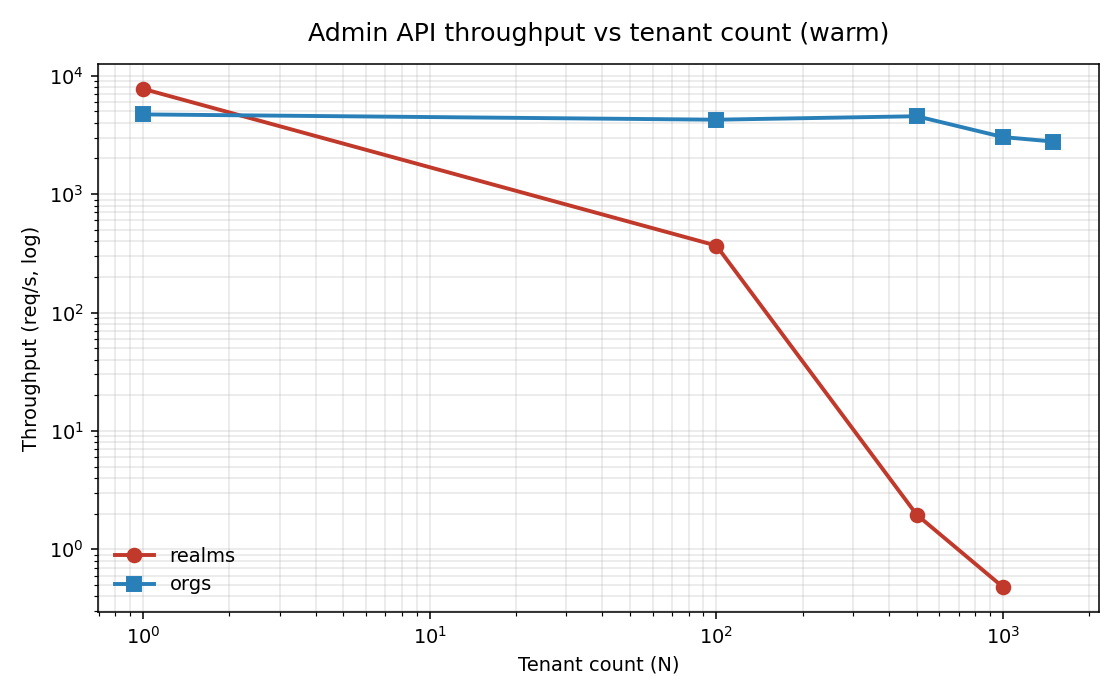

The headline: the admin API collapses
The admin API — listing realms, fetching realm metadata, listing users — is what the admin console hits on every page load. In realms mode it degrades catastrophically: throughput drops four orders of magnitude as you add tenants, and p95 latency goes from 2 ms at one tenant to 16.6 s at 500. By 1000 realms, requests just time out.
Organizations mode actually starts slower at N=1 — fewer optimisations in the per-org code path — but stays essentially flat all the way through 1500 tenants.

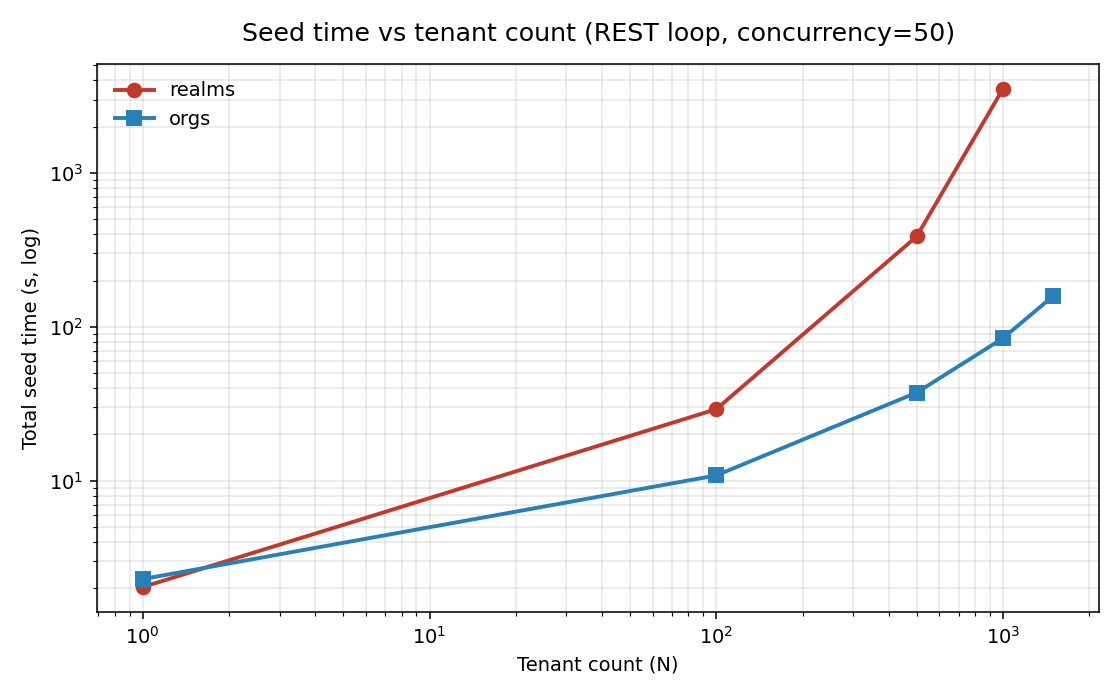

Provisioning is brutal too
Same story for tenant onboarding. Seeding each tenant through the standard admin REST API (two clients, a handful of roles and groups, ten users), at N=1000 realms mode took 59 minutes. Orgs mode took 84 seconds — a 42× gap, and the realms curve is super-linear.

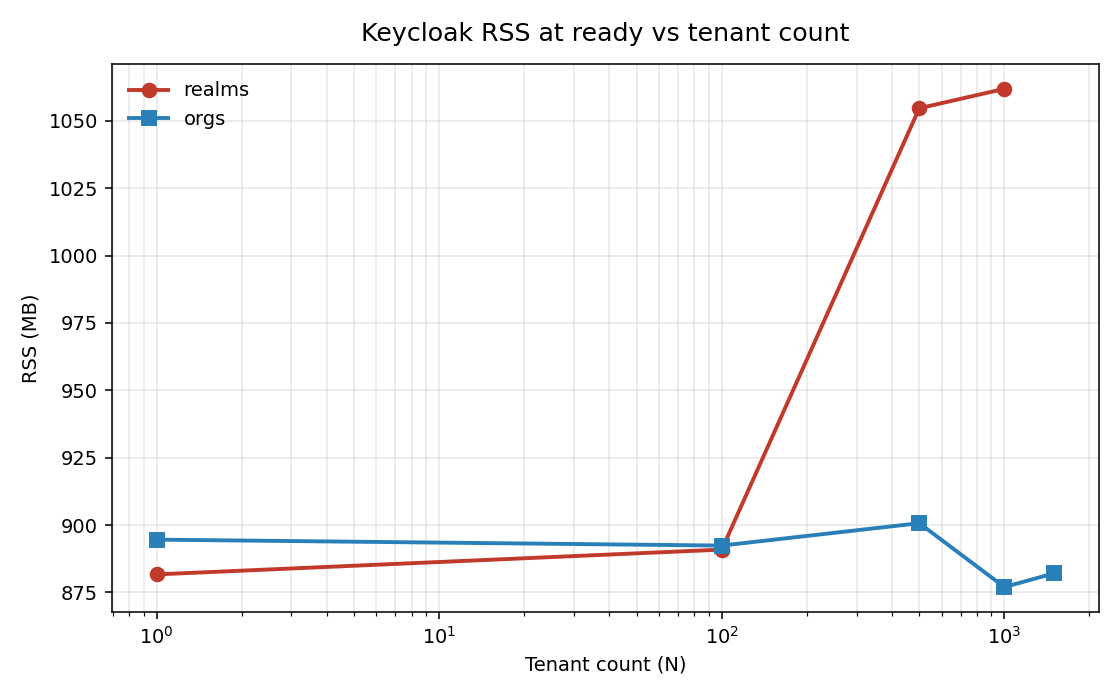

And then it ran itself out of memory
This was the one I didn’t expect. Somewhere around 1200 realms, during seeding, Keycloak’s ClearExpiredUserSessions scheduled task started iterating every realm on every tick — and each call rehydrated the realm cache. Within minutes, process RSS went from ~1 GB to 43 GB (72 % of the box) and CPU pegged at 600 %. I killed it. Orgs mode at 1500 tenants sits at the same ~880 MB it used at one.
What I take from it
For realm-per-tenant multi-tenancy on a single node, Keycloak isn’t viable much past ~500 tenants — and the failure mode beyond that is a hard one (OOM, not just slow). Organizations mode holds up. The user-facing bits — token issuance, JWKS — degrade gracefully in both modes, so this is really an admin-plane and provisioning problem, not a login one.
If you need true realm-level isolation, you’re not wrong to want it — you just can’t do it single-node at scale. Everyone else: reach for organizations.
The full write-up — all the workloads, cold-vs-warm numbers, sizing suggestions, and the caveats (single-node only, plain HTTP, default Postgres) — plus the reproducible setup is in the repo. There’s even a Claude Code skill that runs the whole sweep for you.
github.com/franzos/keycloak-benchmark
Do take the absolute throughput figures with a grain of salt — they’re from one laptop, one KC release. The realms-vs-orgs delta is the part that travels.
